SWING DIAMETER S.A.E. Metric
Over Front Apron 16.0 " 406 mm
Over Cross Slide 9.5 " 241 mm
CAPACITIES S.A.E. Metric
Chuck (optional) 8 " 203 mm
Max Cutting Diameter 16 " 406 mm
Max Cutting Length 30 " 762 mm
Between Centers 30 " 762 mm
TRAVELS & FEEDRATES S.A.E. Metric
X Axis 8 " 203 mm
Z Axis 30 " 762 mm
Rapids on X 75 in/min 1.9 m/min
Rapids on Z 150 in/min 3.8 m/min
Max Thrust X 3096 lb 13772 N
Max Thrust Z 1548 lb 6886 N
SPINDLE S.A.E. Metric
Spindle Nose A2-5
Max Rating 7.5 hp 5.6 kW
Max Speed 2000 rpm 2000 rpm
Max Torque 100 ft-lb @ 375 rpm 136 Nm @ 375 rpm Tour TL-1 de marque HAAS ayant 4 outil à changement automatique.
- Valeur du tour à l'achat (neuf); plus de $30,000
- Utilisation restrainte d'environ 200 heures seulement
- 5 porte-outils Kennametal
- 5C spring collet
- Option floppy disk
- Très propre ...comme neuf
Situé près de Montreal... sur la rive Sud.

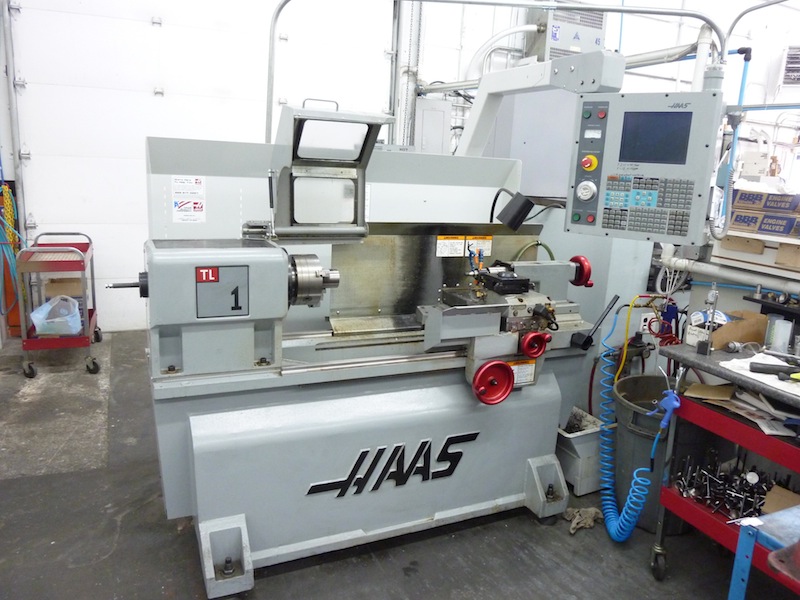

Haas TL-1 Tool Room Lathe with 4-tool automatic tool changer.
- Value of more than 30 000$ new.
- Approximately used for 200 hours.
- 5 Kennametal tool holders included.
- 5C spring collets holder included.
- Optional floppy disk ready included.
- Very clean. |
